Manage Label Printers

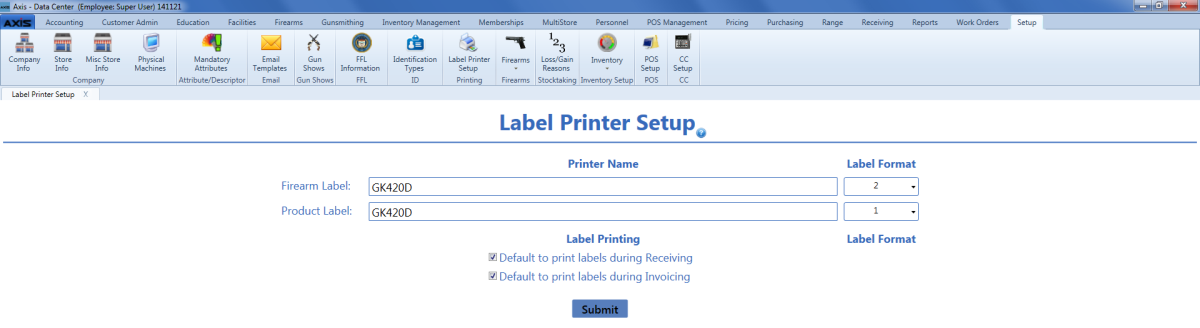

  1. ClosedNavigate to the Label Printer Setup screen.

    1. Log In to the Data Center Application to display the Data Center ribbon menu.

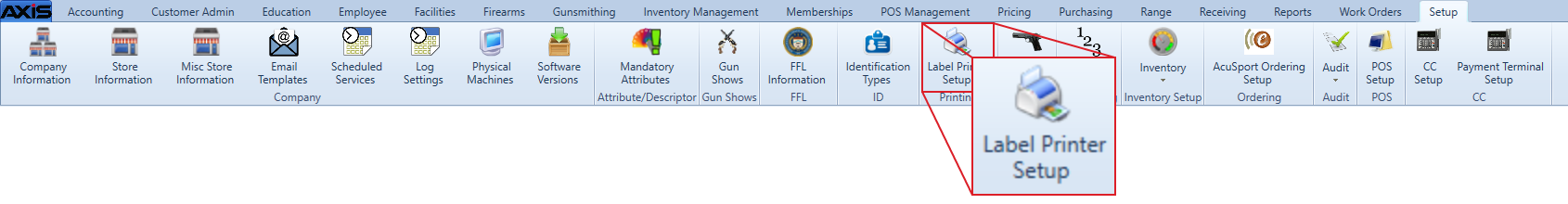

    2. Select Setup > Label Printer Setup from the main menu to display the Label Printer Setup screen.

  2. Enter the name of firearm label printer in the Firearm Label field.
  3. Select the firearm label format in the corresponding Label Format field.

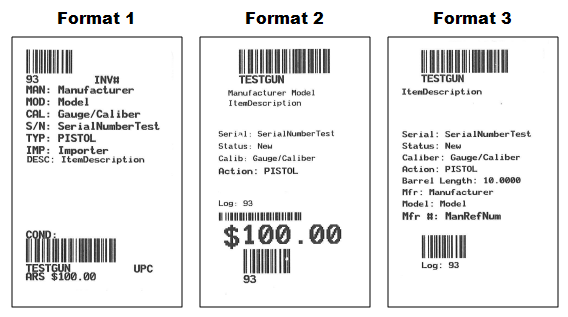

    Note: The following firearm label formats are available.

    Each format includes barcodes for the firearm's UPC and log number. Format 2 includes a third barcode for the firearm's cost.

  4. Enter the name of product label printer in the Product Label field.
  5. Select the product label format in the corresponding Label Format field.
  6. If desired, check the Default to print labels during Receiving checkbox to automatically check the print label checkboxes on the Label Printing window during the receiving process.

    Note: If this checkbox is not checked, the print label checkboxes on the Label Printing window will not be automatically checked.

  7. If desired, check the Default to print labels during Invoicing checkbox to automatically check the print label checkboxes on the Label Printing window during the invoicing process.

    Note: If this checkbox is not checked, the print label checkboxes on the Label Printing window will not be automatically checked.

  8. Click the Submit button to display an update confirmation window.

  9. Click the OK button to close the window.
