Manage Credit Card Processor Credentials

1. Navigate to the Credit Card Setup screen.

   1. Log In to the Data Center Application to display the Data Center ribbon menu.

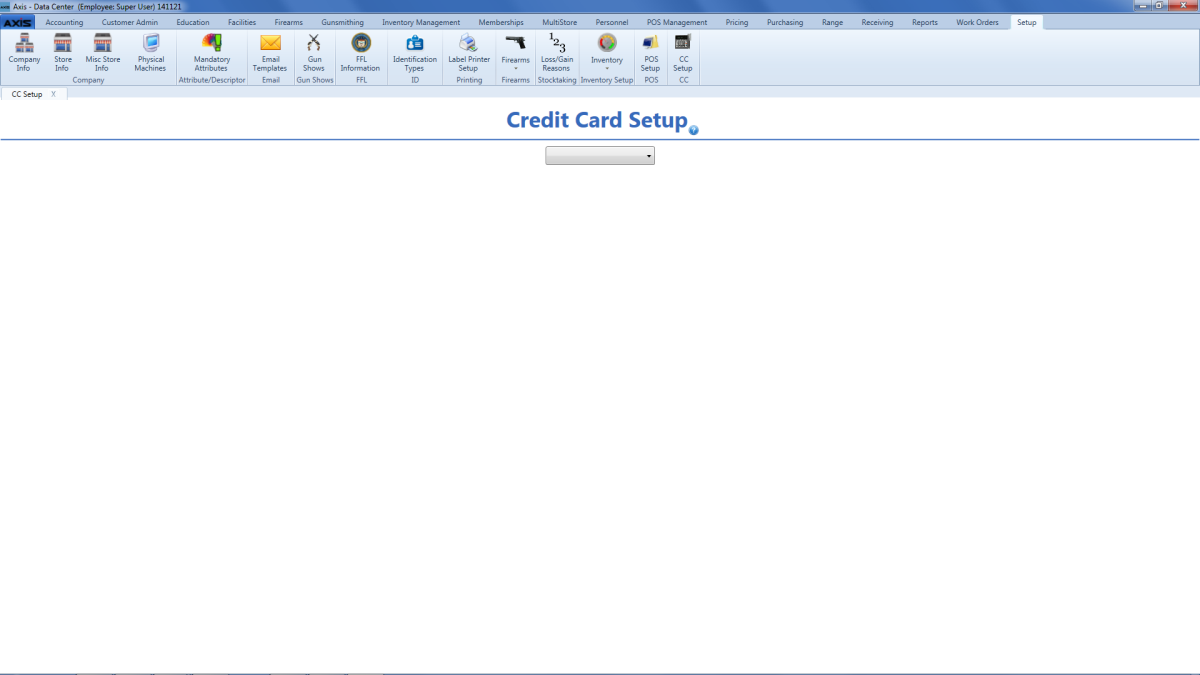

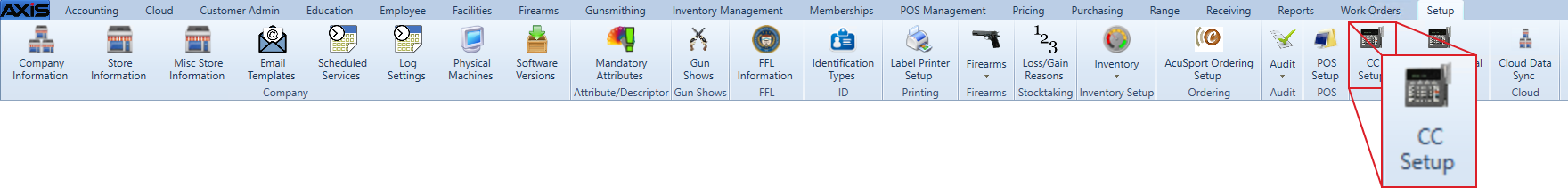

   2. Select Setup > CC Setup from the main menu to display the Credit Card Setup screen.

      Note: A user must be granted the CreditCardSetup security role to use this feature.

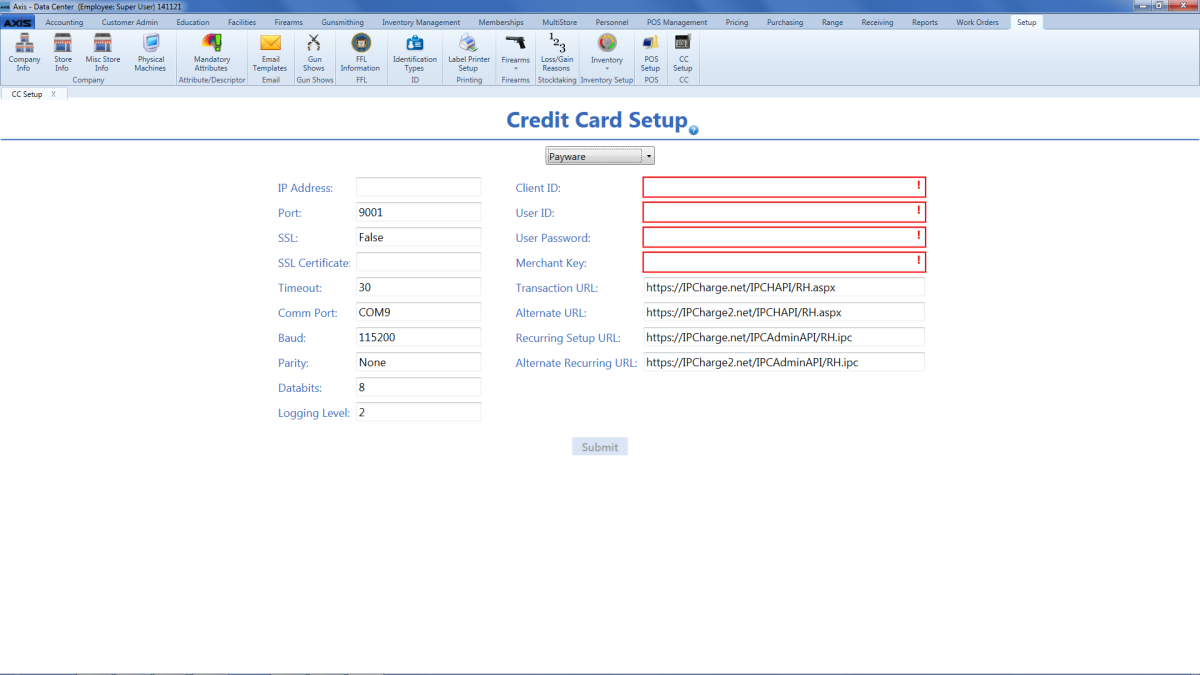

2. Select the appropriate provider (Payware) from the drop-down menu to display a list of data fields.



3. Enter/edit provider information in the window.

   Note: Required fields and settings are displayed with red borders. Default settings are provided below.

   IPAddress
   Port	9001
   SSL	False
   SSLCertificate
   Timeout	30
   Comm Port	COM9
   Baud	115200
   Parity	None
   Databits	8
   Logging Level	2
   Client ID
   User ID
   User Password
   Merchant Key
   Transaction URL	https://IPCharge.net/IPCHAPI/RH.aspx
   Alternate URL	https://IPCharge2.net/IPCHAPI/RH.aspx
   Recurring Setup URL	https://IPCharge.net/IPCAdminAPI/RH.ipc
   Alternate Recurring URL	https://IPCharge2.net/IPCAdminAPI/RH.ipc

   Note: The Recurring Setup URL and Alternate Recurring URL are used to set up a customer, set up a contract, and update a customer or contract.

4. Complete the Client ID, User ID, User Password, and Merchant Key fields.

5. Click the Submit button.
