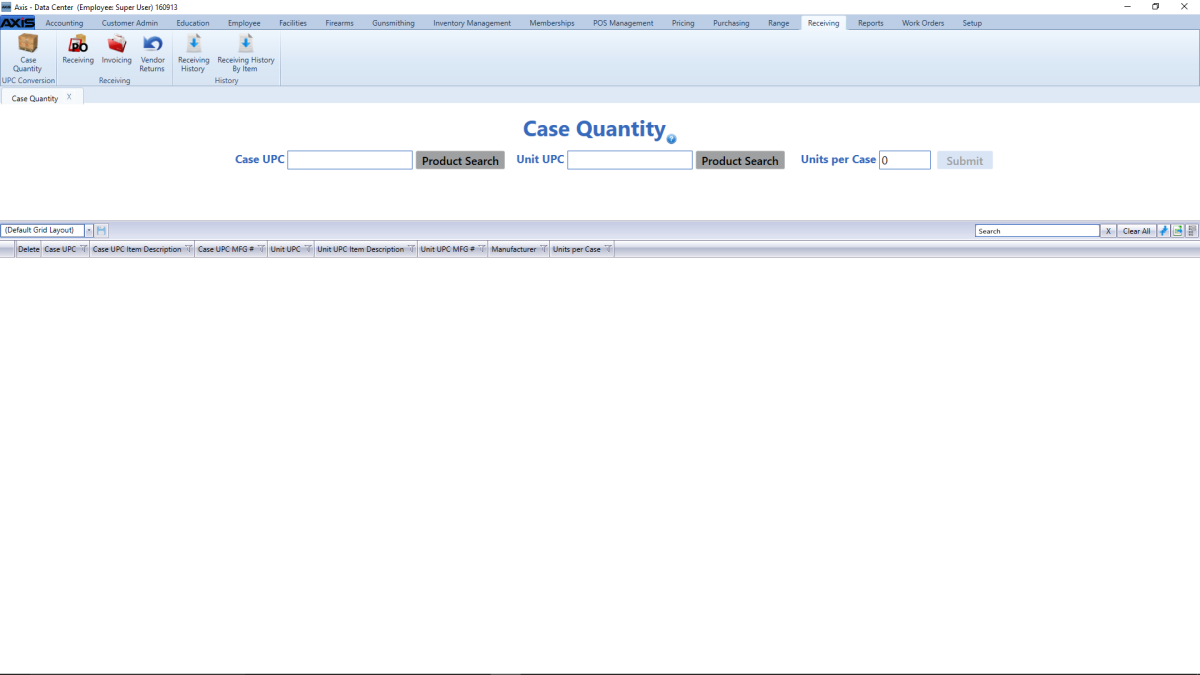

Case Quantity screen

The Case Quantity screen allows the user to establish a relationship between a single item (selling unit UPC) and a case or multi-pack (case UPC) of the same item and to define the number of items in the case.

Use the Case Quantity screen

1. Log In to the Data Center Application to display the Data Center ribbon menu.

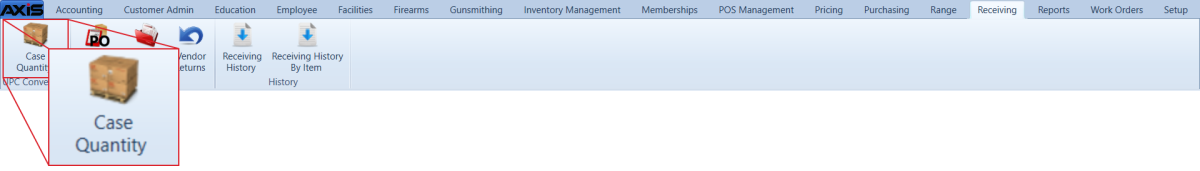

2. Select Receiving > Case Quantity from the main menu to display the Case Quantity screen.



3. Complete the desired procedure(s) with onscreen features.

   Case UPC field	Click the Search button beside the field to select the case UPC (typically a case or multi-pack item).
   Unit UPC field	Click the Search button beside the field to select the selling unit UPC (typically a single item).
   Units per Case field	Enter the number of units per case in the Units per Case field.
   Submit button	Click the Submit button to add the case quantity to the list.
   Grid Layout Controls	Complete the following to save a layout: Select the desired combination of filters, sorts, groupings, etc. Enter a name for the layout in the Default Grid Layout field. Note: Some screens allow the user to modify and save changes to the default (Default Grid Layout) layout, though most do not. Click the Save button beside the field to save the current layout under the name in the field. Select the desired layout from the Default Grid Layout drop-down to recall that layout. Note: Select the Default Grid Layout option to recall the default layout.
   Sort and Filter Reporting Screen Data	Use these controls on the screen as needed to modify the list. Enter a term (string of characters) in the Search field to display only records containing that term. Click the Clear Search (X) button to undo the Search field filter. Click the Clear All button to undo all filters. Click the Toggle Filters button to display filter controls at the tops of the columns. (Click again to hide the controls.) Click the Export to Excel (Table) button to export the data to an Excel file formatted like the screen. Click the Column Chooser button to hide or display individual columns.
   Delete button	Click a case quantity's Delete button to remove it from the list.

   • Set Up a Case Quantity
   • Delete a Case Quantity
